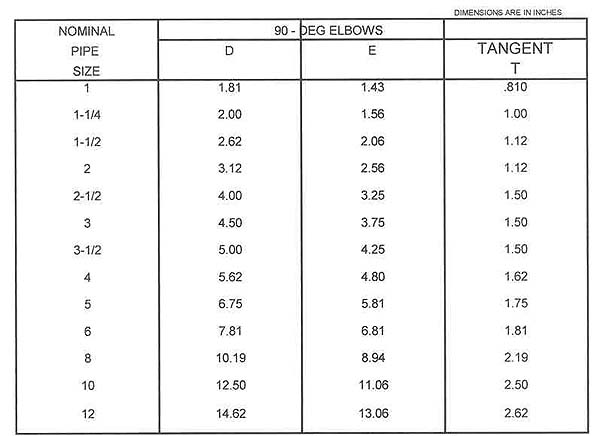

TABLE 7. SHORT RADIUS STREET ELBOW DIMENSIONS

Short radius elbow dimensions for belled-end fittings

BESTWELD, INC. - TABLE 7 - DIMENSIONS
MSS SP119 BELLED-END
SHORT RADIUS STREET ELBOW

Short radius elbow dimensions for belled-end fittings

Notes:
  1. Dimensions N and D are the fitting center to end.
  2. Dimension E is the fitting center to end of pipe.
  3. Dimension T is the length of the fitting tangent.
