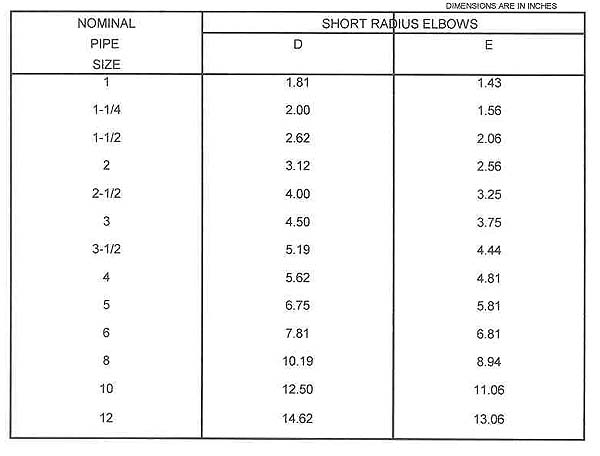

TABLE 5. SHORT RADIUS ELBOW DIMENSIONS

Short radius elbow dimensions
for belled-end fittings

BESTWELD, INC. - TABLE 5 - DIMENSIONS
MSS SP119 BELLED-END
SHORT RADIUS ELBOW

Short radius elbow dimensions
for belled-end fittings

Notes:
  1. Dimension D is center to end of fitting.
  2. Dimension E and G are center of fitting to end of pipe.
