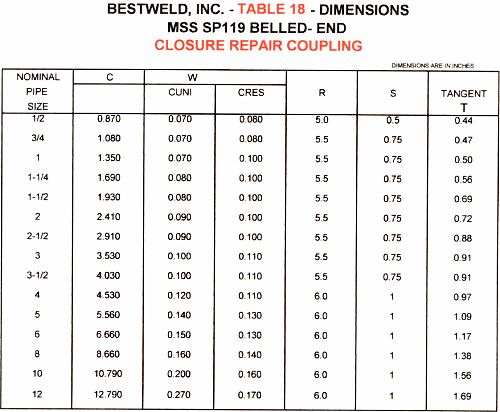

TABLE 18. CLOSURE REPAIR COUPLING DIMENSIONS

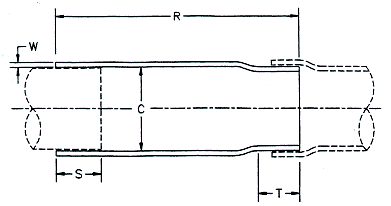

Closure repair coupling dimensions

Closure repair coupling dimensions

Notes:
  1. Dimension C specifies the coupling inside diamenter.
  2. Dimension R specifies the coupling end to end dimension.
  3. Dimension W specifies the minimum coupling wall thickness.
  4. Dimension S specifies the minimum insertion depth.
  5. Dimension T is the length of the fitting tangent.
  6. This fitting is designed to replace fittings in installed piping.
