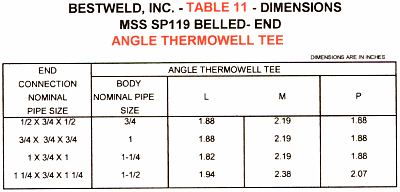

Notes:

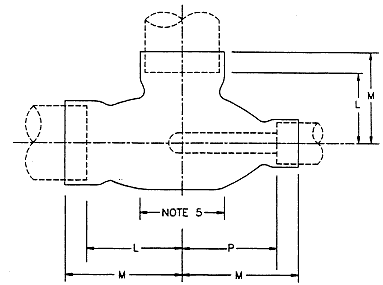

- Dimension M is center to end of fitting.
- Dimensions P and L are center of fitting to end of pipe or thermowell base.
- There shall be sufficient tangent length in the midbody of each fitting to form the branch and not affect the midbody to run transition shape.
